1313 Monochrome Series RA>97 continuous COB LED chip

Category

Product Center

LED COB CHIP

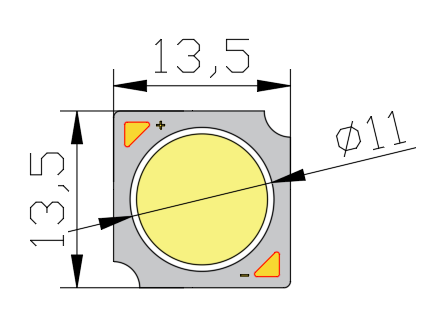

The 1313 COB LED chip is a high-performance Chip-on-Board (COB) light-emitting diode with a standard package size of 13mm × 13mm. It integrates multiple LED dies directly onto a single ceramic or aluminum substrate, forming a compact, high-brightness light source module.
Contact
Messages

Product Details

Part NO  Power  CCT  CRI  LM VF IF  Efficacy SDCM
PL1311-C03-3C3B-80 3W 3000K/4500K/5000K 80 400-500 8-10V 300MA 140-160LM/W SDCM>3
HLX-PL1311-C05-5C2B-80 5W 3000K/4500K/5000K 80 700-800 14-16 V 300MA 140-160LM/W SDCM>3
PL1311-C07-7C2B-80 7W 3000K/4500K/5000K 80 900-1100 20-22V 300MA 140-150LM/W SDCM>3
HLX-PL1311-C12-12C2B-80 12W 3000K/4500K/5000K 80 1500-1700 23-25V 300MA 130-140LM/W SDCM>3
PL1311-C24-12C4B-90 24W 3000K/4500K/5000K 90 2800-3000 23-25V 600MA 120-125LM/W SDCM>3
PL1311-C24-6C8B-97 24W 3200/5600K >97 2100-2300 17-19V 1200MA 90-105LM/W DUV±0.0025
